ND Diamond Wire Saw
ND Diamond Wire Saw
The Ultimate Diamond Wire Saw Solution for Complex Demolition & Quarry Cutting.

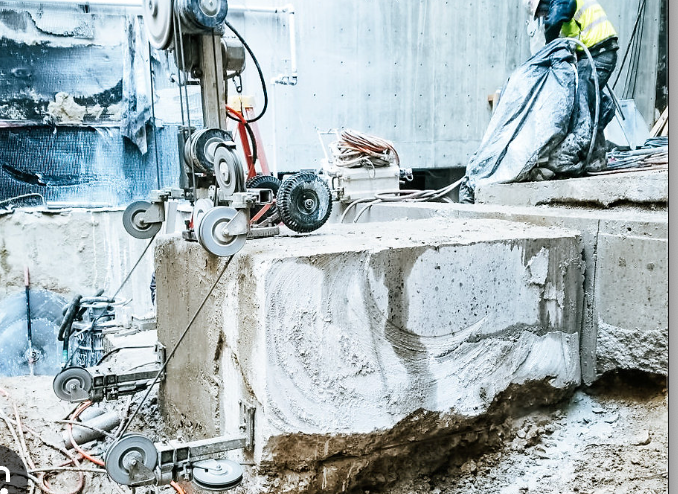

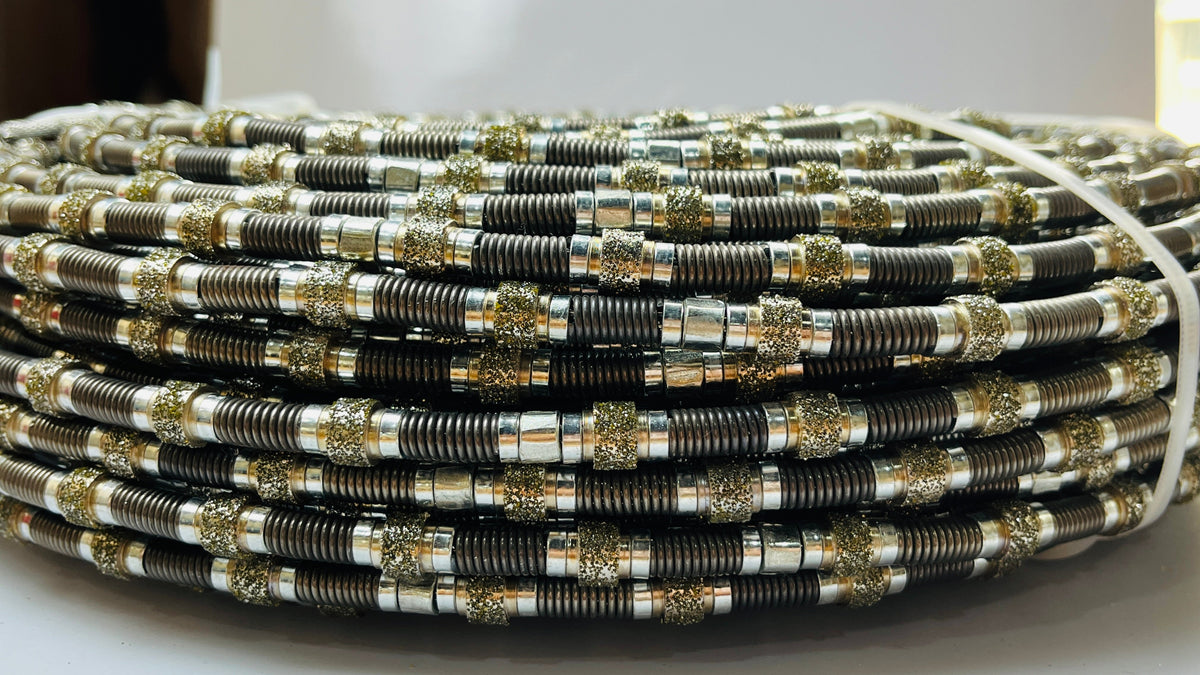

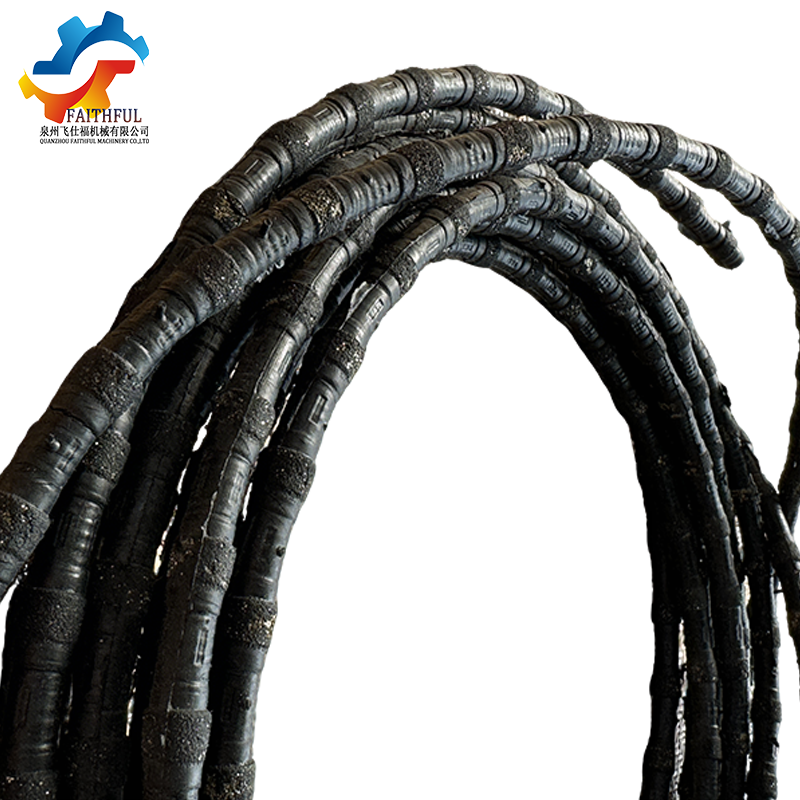

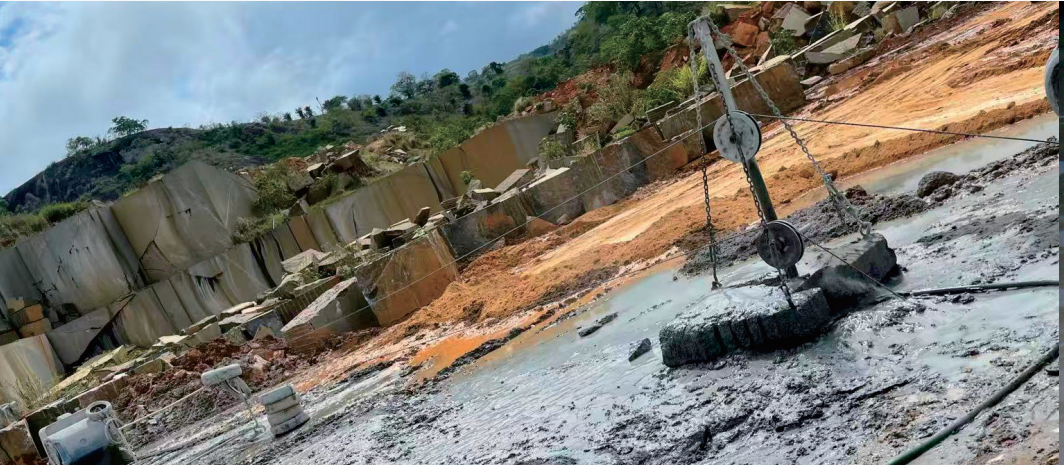

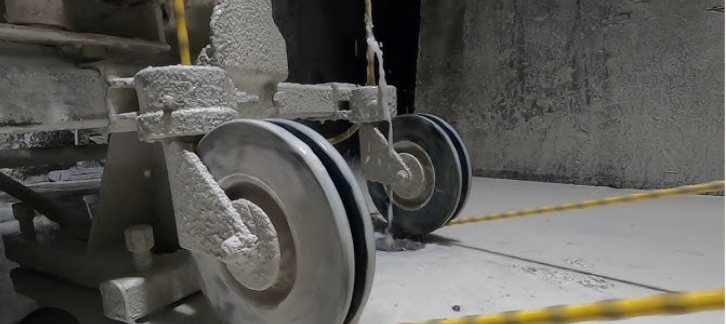

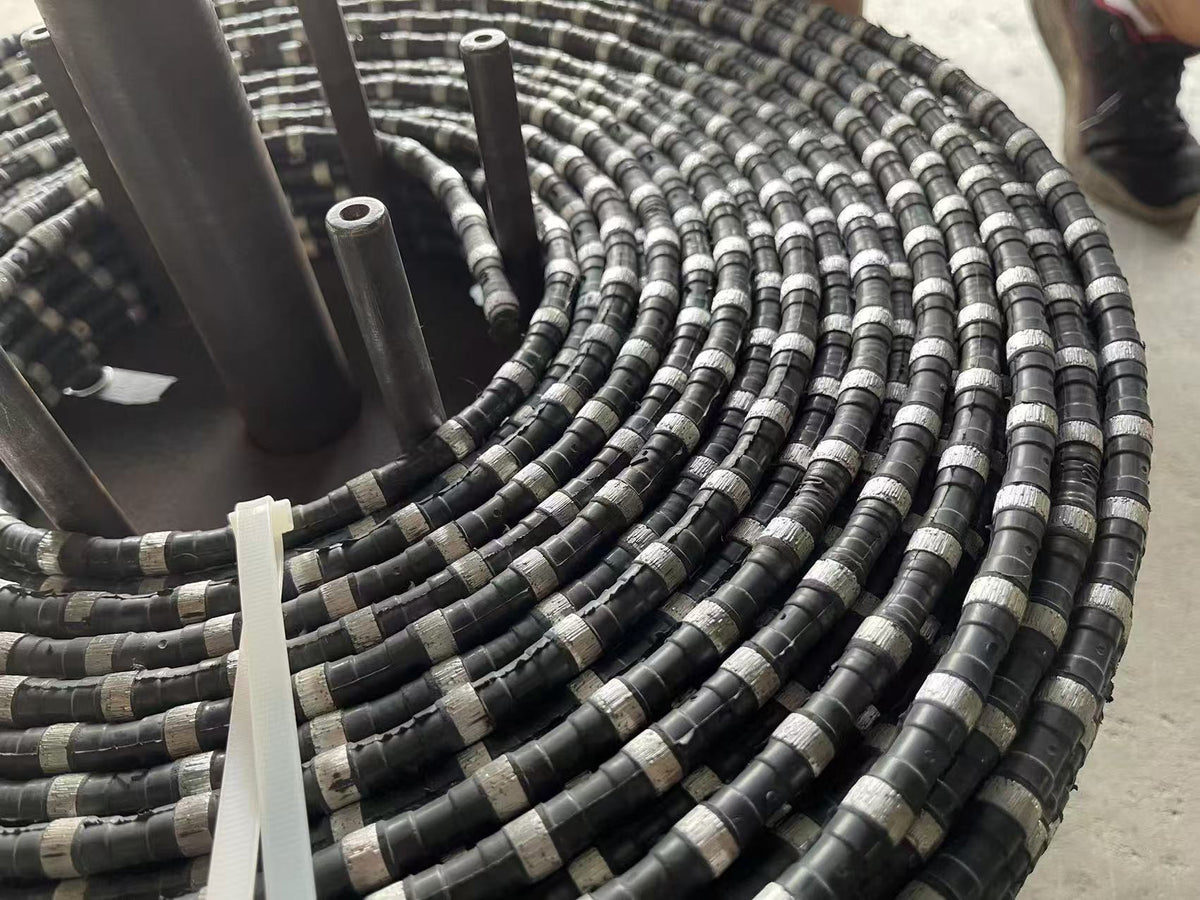

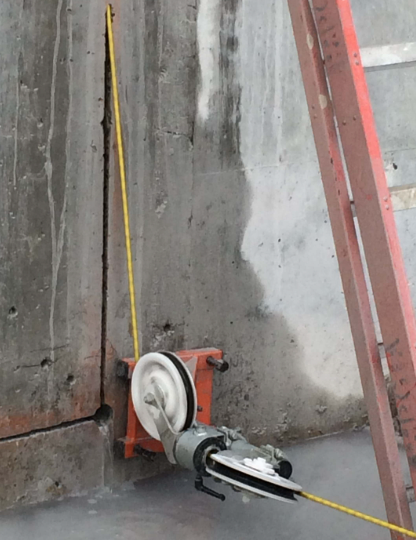

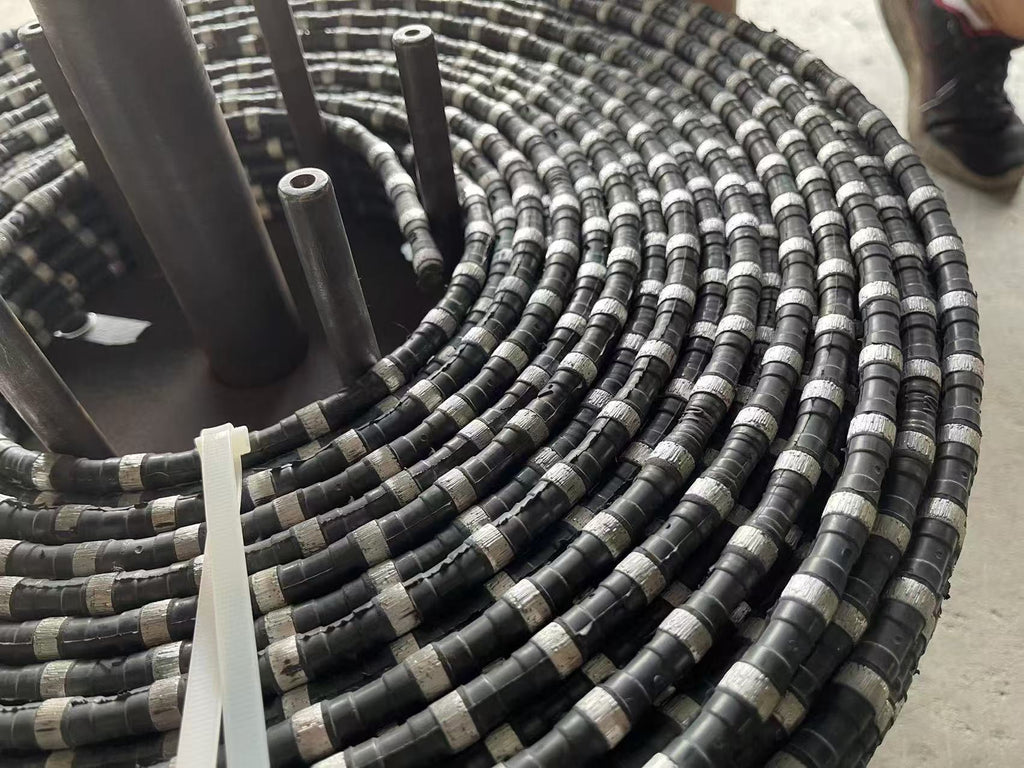

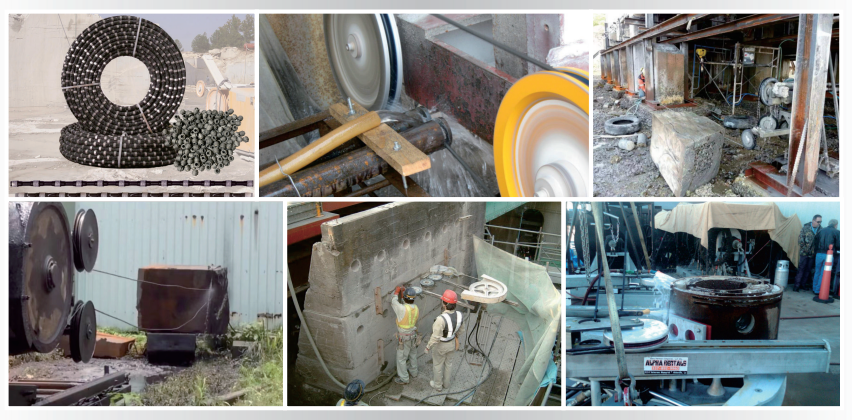

The NovaDiamond Diamond Wire Saw is the premier cutting solution for professionals tackling the most demanding demolition, construction, and quarrying applications. Widely trusted in marble quarry cutting, reinforced concrete demolition, concrete steel pipe cutting, subsea operations, and fiberglass cutting, this wire saw delivers unmatched versatility and cutting efficiency where conventional blades simply cannot reach. Available in four configurations — Sintered (10.5mm & 11.5mm), Electroplated (11mm), and Vacuum Brazed (11.5mm) — each with rubber+spring fixing mode and 40–44 beads per meter, the ND Diamond Wire Saw achieves linear speeds of 20–25 m/s with cutting rates of 1.0–3.5 m²/hour and wire life of 1.5–3.0 m²/m. Whether you are cutting through standard concrete, heavily reinforced structures, or operating in subsea environments, the ND Diamond Wire Saw provides the precision, durability, and performance that industry professionals demand.
| Diameter (mm) | Beads/m | Fixing Mode | Material Cutting | Linear Speed (m/s) | Cutting Speed (m²/hour) | Wire Life (m²/m) | Price ($/m) |
|---|---|---|---|---|---|---|---|
| 11.5 | Sintered 40pcs | Rubber + Spring | Various normal or Reinforced Concrete | 20-22 | 1.0-2.0 | 2.0-3.0 | $0.00 |
| 10.5 | Sintered 40pcs | 20-22 | 1.5-2.2 | 1.8-2.5 | $0.00 | ||
| 11 | Electroplated 40pcs | Reinforced Concrete Steel pipe, subsea use, fiberglass | 22-25 | 2.5-3.5 | 1.8-2.5 | $0.00 | |
| 11.5 | Vacuum brazed 44pcs | 22-25 | 2.5-3.5 | 1.5-2.1 | $0.00 |
